It is a simple and effective cable directing device which greatly reduces the time necessary to install an above-ground switch or transformer using underground cables. The cable directing device requires no template, provides simple and easy cable routing, and provides complete cable shielding into and out of transformers or switches.
While the above focuses on electrical switches transformers and electrical cables, the principles involved are applicable with installations of other underground cables which are connected to above ground apparatus, such as buried telephone and television cable, which can be ordered. Giving specific size and measurements.

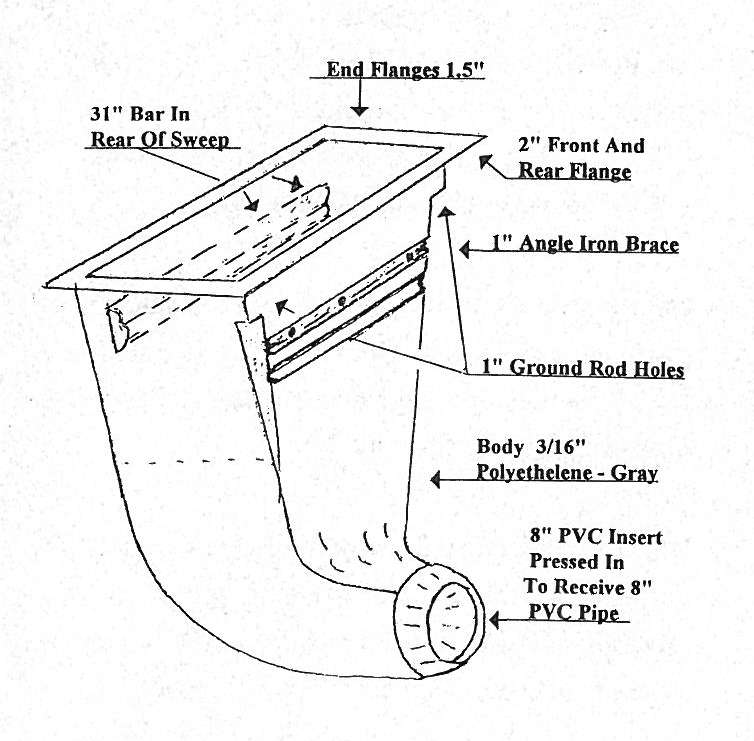

The E-Z Sweep can be used in 3 way, 4 way and loop tap tie• switches. Precast polymer concrete pad measuring 96" x 80" with well opening 21” x 65”. Also, dead front transformer. Measurement for E-Z Sweep : Inside 20” x 30" with 2" flange front and rear and 1.5" flange on sides, 40" from top of flange to bottom of 8” conduit opening, 8" PVC insert compressed to receive and cement conduit.
Material: Polyethylene
Thickness: 3/16”
Weight: Approx. 50 pounds
Two ground-rod holes - left, right and front
 | ||||
Kendrick Concepts, Inc.
Kendrick Concepts, Inc. - P.O. Box 2278 Suffolk, Va - Ph: (757) 478-3346 Email:kci.ezsweep@mail.com
The E-Z Sweep - Name and Design are property of Ralph C. Kendrick, Jr. U.S. Patent No. 5,587,554
